SQ08-SQ20 Electrical Components

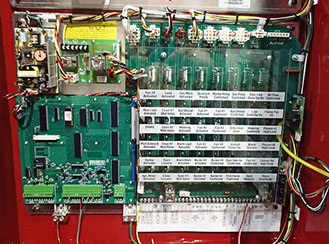

Control Cabinet

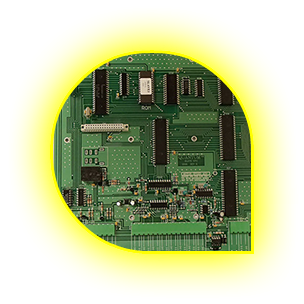

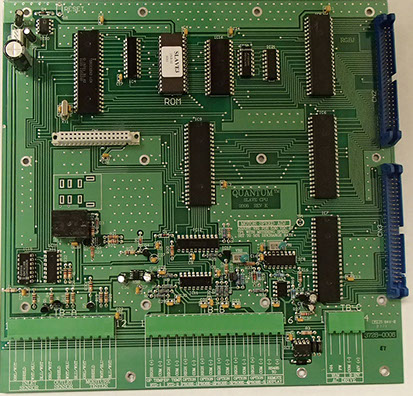

Salve Board • Part No. 3728-00006
x
Click here to see location in Control Cabinet

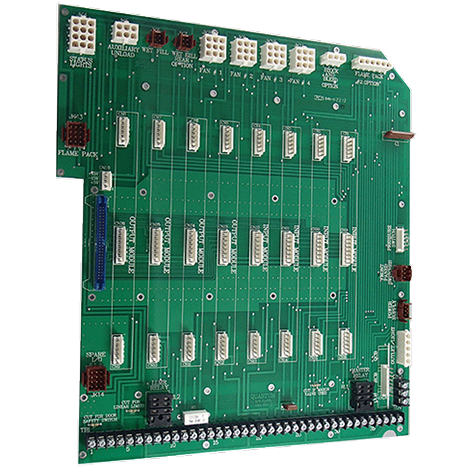

I/O Carrier • Part No. 3728-00018

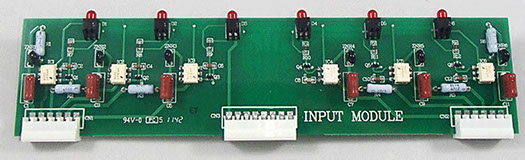

Input Module • Part No. 3728-00007
x

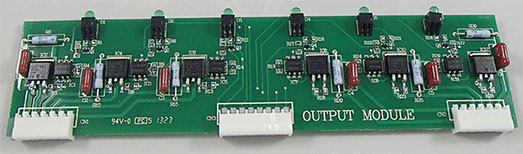

Output Module • Part No. 3728-00008
Click here to see location in Control Cabinet
Flame/Aux Board • Part No. 3728-00026

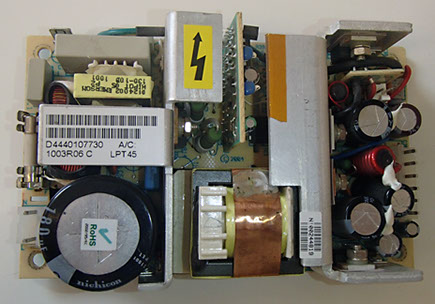

Power Supply • Part No. 2563-00025
Slave Chip • Part No. 3729-00014
Moisture Sensor Buffer Chip • Part No. 2579-00362
Communication Chip • Part No. 2579-00304
Metering Reverse Board • Part No. 3726-00025

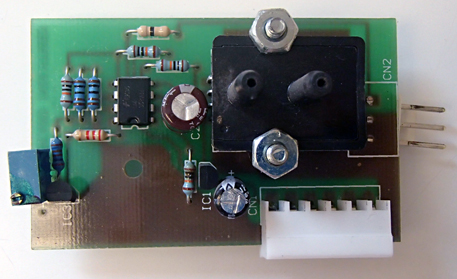

Quantum Pressure Module • Part No. 3728-00054
Dwyer Photohelic • Part No. 2460-00018

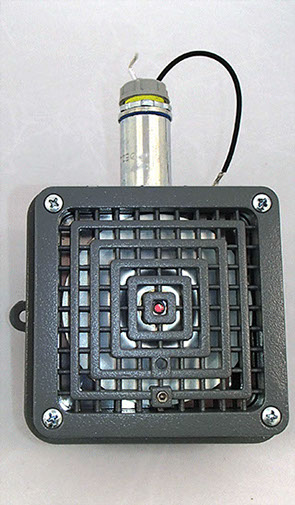

Alarm Horn • Part No. 3126-00040
1
2
