About 6'' [15.2. cm] from the edge of the concrete pad in front of the

red Control Panel, pound the 9' Grounding Rod into the ground with a rotary sledge hammer until 1 1/2'' [3.8 cm] of the rod is visible above ground level.

Secure the copper grounding wire by installing a rubber fitting* in the rear floor of the red Control Panel.

Install rubber retainer loops every 8'' [20.3 cm] across and down the Control Box Mounting Brackets.

Run the copper wire through the loops and across the pad close to the Leg Base, securing the wire to the pad, and clamp.

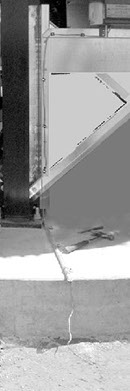

Route the copper wire to the edge of the pad and down the side. Protect the wire at this turn with a conduit pull ell at the conduit end. See Detail A.

About 1/2'' [5.7 mm] below the top of the 3

buried grounding rod, clamp the copper wire to the rod with a ground rod clamp.

With a hammer, pound the wire as flat to the ground as possible, so the wire will not be a tripping hazard.

Cover the clamped connection with dirt. See Detail B.

Ground The Control Box

*

Detail A

Detail B
