q cpu board

2015 Quantum® Controller Manual

DANGER! Electricity can KILL! Use extreme CAUTION around electrical components shown on these pages. SHUT OFF, LOCKOUT and TAGOUT electrical power BEFORE opening and servicing any internal
components. All electrical testing and service on this equipment must be done by a QUALIFIED ELECTRICIAN, in accordance with all applicable national, state and local
electrical SAFETY codes. Failure to do so will result in death or serious injury. Brock Grain Systems neither will be liable for damage to the Dryer or to person(s) because of unqualified electrical testing or use. Improper testing or use will void the Warranty.

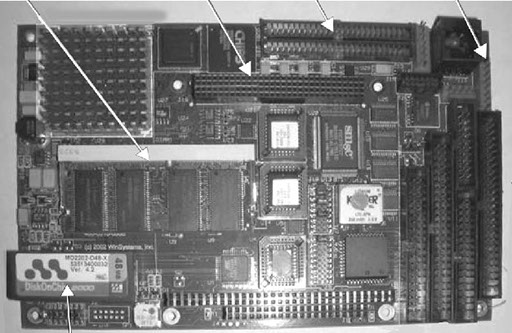

Master CPU Board

The MASTER CPU board is the main "BRAIN" of the QUANTUM® system. It is in constant communication with the Slave Board which is mounted on the Dryer Control Panel. All information about the current status of the Dryer is reported to the Master by the Slave Board. The Master then computes all the necessary corrections needed to control the drying process. The Master instructs the Slave as to what parameters to change. All communications between the Master and Slave are done via the RS485 communications cable. If communication between the two are lost, the dryer will automatically shut off.
