SQ08-SQ40 Mechanical Installation Manual

Transition Adapters Are Required for Some Installations

SEE
DETAIL

*

1

9

14

17

30'' Legs and 4'' Air Lock

*

1

10

14

18

36'' Legs and 4'' Air Lock

*

15

1

17

NO Transition Required, 30'' Legs and 5'' Air Lock

*

11

1

18

15

36'' Legs and 5'' Air Lock

*

18

1

12

16

36'' Legs and 6'' Air Lock

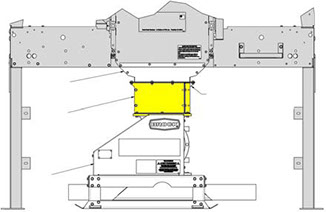

Some installations require an Adapter to modify the height between the Piston Sampler and a SUPER-AIR® air lock. Adapter hole patterns differ* between top and bottom flanges. All Adapter options shown below are shipped with Piston Sampler-Transition Kit (5664-00051). Install the proper Adapter where needed. Discard unused Adapters.

Adapter Kit 5664-00053G04 (Item 9) on 30'' Legs and a 4'' Air Lock System.

Adapter Kit 5664-00054G04 (Item 10) on 36'' Legs and a 4'' Air Lock System.

NO Transition Adapter is required on models with 30'' Legs and a 5'' Air Lock System.

Adapter Kit 5664-00054G05 (Item 11) on 36'' Legs and a 5'' Air Lock System.

Adapter Kit 5664-00054G06 (Item 12) on 36'' Legs and a 6'' Air Lock System.
